New 2025 Chinook Bayside TB

Standard Features (2025)

Chassis Standards

• Ford Transit Van 350HD w/ AWD, 3.5L Eco Boost Twin Turbo Gas Engine
• 10 Speed Transmission
• Navigation, Apple CarPlay, & Android Auto
• 360 Degree Back-Up Camera
• Safety features including blind spot detection, collision warning, lane keeping system & side-wind stabilization
• 31 Gallon Fuel Tank
• Preferred Equipment Package
• Upfitter Package
• Tow Package
• Ford Aluminum Wheels

Bayside Package Standards

• Dometic Penguin II A/C
• Timberline 1.0 Gas Fired Hydronic Heat & On-Demand Hot Water System
• Thermal Suppression System
• Xantrex 2000-Watt Inverter
• 200-Watt Solar Panel System w/ Solar Charger & Display
• Cummins Onan Generator RV QG 2800I EFI (STD on non-Lithium Models Only)
• AGM House Batteries 200 Amp Hours
• Girard 12 ft. Awning w/ Built in Wind Sensor
• 1 Piece Subfloor (25 YR Warranty)
• Fully Insulated w/ Sound Dampening R9 Hushmat
• Norcold / Thetford 6.2 cu ft. Electric
• Single Induction Cooktop, Removable for Exterior Cooking
• Convection Microwave
• Smart TV
• Smart Plug - Detachable 30 Amp Power Cord
• Echo Charger (Dual Battery Bank Charging, Charges House & Chassis Batteries)
• Solid Surface Countertops, & Porcelain Toilet
• Soft Touch, Padded Vinyl Finishing
• Front & Rear Bug Screens

Bayside 360 Standards

• Bayside Package – Plus Below!!
• Electronic Systems Solution by Wellspring Components
• Expion 360 600 amp/hr. Lithium Battery System (7.78KWH)
• High output 2nd alternator w/ Gen Delete.
• Victron 3000-Watt Inverter w/ Charger & Cerbo Touch Screen Monitor
• 300-Watt Solar Panel System w/ Victron Solar Charger
• High output 2nd alternator w/ Gen Delete.
• Truma Aventa 13.5 BTU A/C with Built in Dehumidifier

*The Bayside 360 Includes the Truma Aventa A/C IPO the Dometic A/C, & Victron components IPO of Xantrex & Merlin components. The Echo Charger is also removed & replaced with Battery Boost

Options

• Opening Rear Windows (2 Per Floorplan)
• Online Package (Winegard Starlink System)
• Adventure Package (Incl. Roof Rack, Side Ladder, Nerf Steps)
• Black Out Package (Black Wheels, A/T Tires)
• Leveling Suspension Kit (2-inch Aluminum Front Lift Spacer)
• Front Seat Recovers (STD on 360)
• Insulated Front Cockpit Window Shades (STD on 360)
• Truma Aventa 13.5 BTU A/C with Built in Dehumidifier (STD on 360)
• 12v Grey & Black Tank Heat Pads (STD on 360)
• Cummins Onan 2.8kw Gas Generator (360 Models only)

Exterior Colors

• White
• Silver
• Carbon
• Black
• Blue

Interior Colors

• Soho
• Walnut Chiffon
• Nizza

Floorplans

• Bayside RS = Powered Rear Sofa

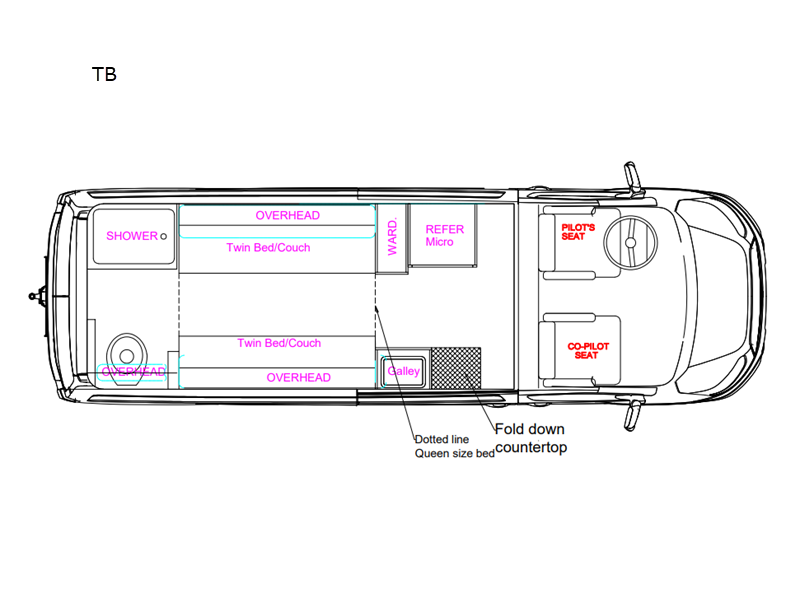

• Bayside TB = Twin Beds w/ capability to be one Queen
• Bayside SS = Powered Front Single Sofa

Please see us for a complete list of features and available options.
All standard features and specifications are subject to change!

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
