Outside Van Baseline Motor Home Class B - Diesel RVs For Sale
The Baseline Class B diesel coach by Outside Van is the perfect starter van for those looking to customize their adventures!
Starting with the Mercedes-Benz Sprinter chassis, you can choose the 144 or 170 wheelbase plus 4WD or AWD. With the Baseline, the basics have been covered, so you can have the perfect canvas to create the van you want. The Baseline Interior Package includes infrastructure, sound damping, precision cut wall, floor, and ceiling panels, a removable 3-panel bed system, and more. Since the first steps have been covered, you can choose your own power, heating, and water systems, or check out Outside Van's shop for these components to be installed; see dealer for more details!
It's never been easier to create your own Class B diesel coach than with the Baseline by Outside Van!
-
Baseline 144
Outside Van Baseline Class B diesel van 144 highlights: Mercedes-Benz Sprinter ... more about Baseline 144
Have a question about this floorplan? Contact Us
Specifications
Fuel Type Diesel Chassis Mercedes-Benz Sprinter Wheelbase 144 in -

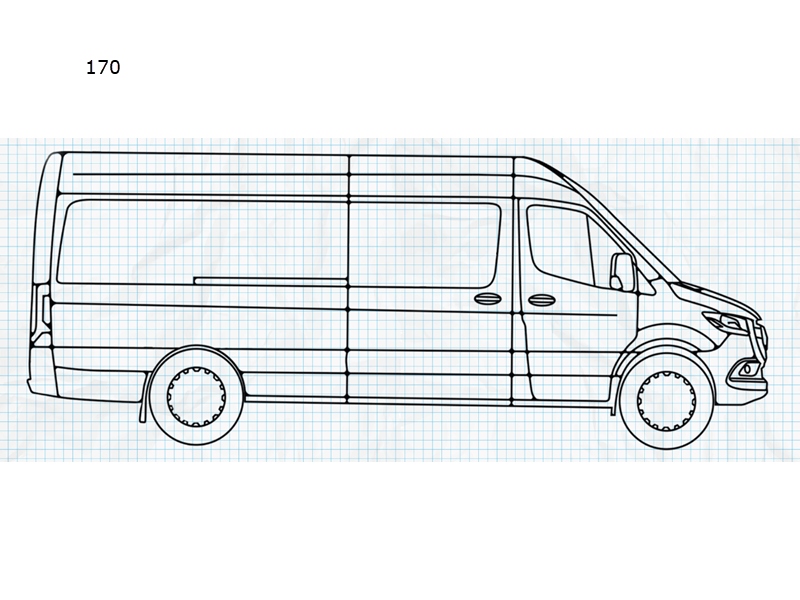

Baseline 170
Outside Van Baseline Class B diesel van 170 highlights: Mercedes-Benz Sprinter ... more about Baseline 170
Have a question about this floorplan? Contact Us
Specifications
Fuel Type Diesel Chassis Mercedes-Benz Sprinter Wheelbase 170 in
Baseline Features:
Standard Features (2025)
Interior Package Includes
- Removable 3-Panel Bed System
- T-Vent windows
- Awning windows (170 wheelbase only)
- Powered venting
- Dimmable ceiling lights
- Wire passthroughs
- Insulation
- Infrastructure
- Sound damping
- Precision cut wall and ceiling panels
- Precision cut floor
- Fire extinguisher
- C02 detector
- Available fuse locations for future additions
- Dimmer relay
- Wheel well boxes
The Finer Details
- Infrastructure
- Machine cut and folded 14 gauge and 16 gauge galvanized steel
- Strategically located wire passthroughs with safety grommets for ware protection
- Insulation and Sound Dampening
- Double-sided 3M Thinsulate packed into wall and ceiling cavities for thermal insulation
- Foil-wrapped butyl sound dampening added to the rear wheel wells for a more pleasurable driving experience
- Precision Cut Floor
- 3/4-inch 11-ply marine grade plywood
- 1/8-inch foam thermal barrier
- Lonseal vinyl flooring
- Powder-coated aluminum stepwell trims
- Precision Cut Wall Panels
- 1/4-inch birch plywood
- Closed-cell foam backer
- Wrapped in interweave

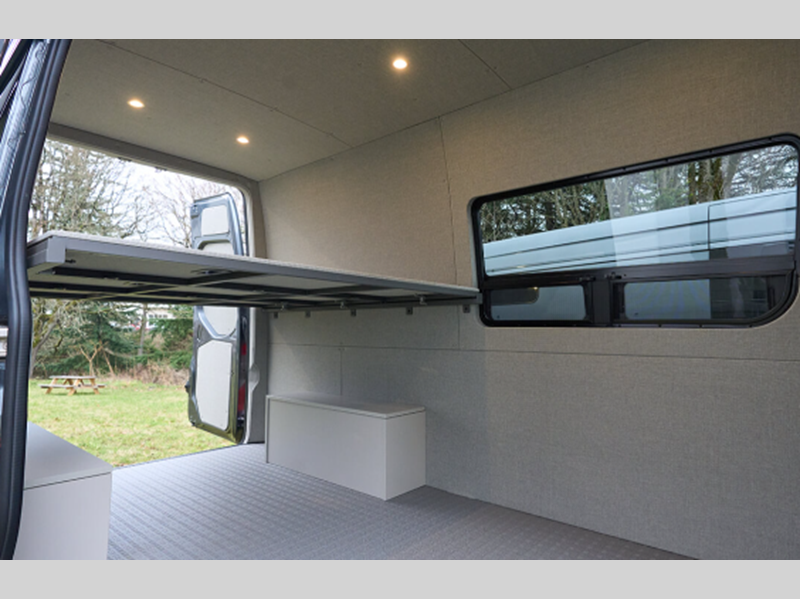

- 3-Panel Bed System
- Powder-coated aluminum frame
- Precision-cut 3/8-inch light plywood wrapped with closed-cell foam and interweave
- Pre-installed bed rails securely fastened to the infrastructure for ultimate strength and durability
- Aftermarket Add-Ons

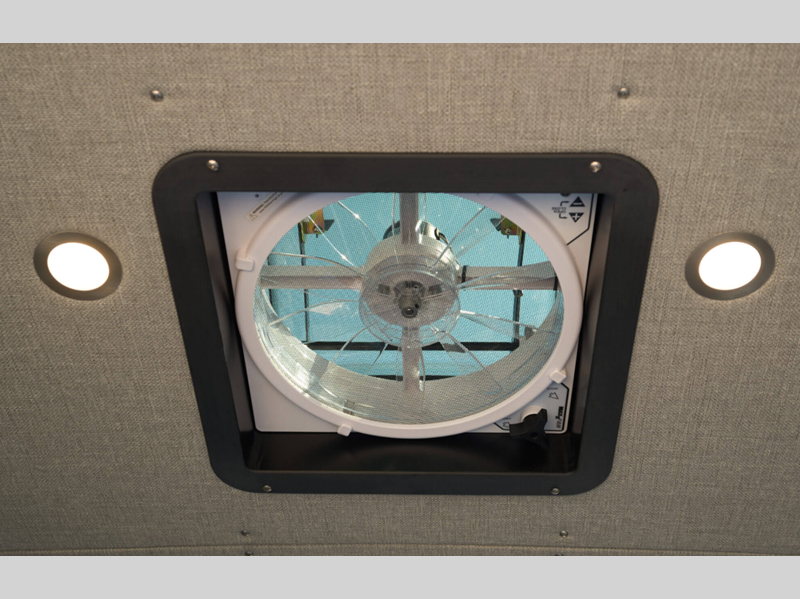

- 10-Speed Vent Fans (1x for the 144 wheelbase, 2x for the 170 wheelbase), wired to the chassis battery
- T-Vent Windows on the slider and driver side wall
- 10x33 Awning Windows (170 wheelbase only)
- Dimmable LED ceiling puck lights (8x for the 170 wheelbase, 6x for the 144 wheelbase) wired to the chassis battery
- Dimmer switches for ceiling lights pre-installed in the B and D pillars

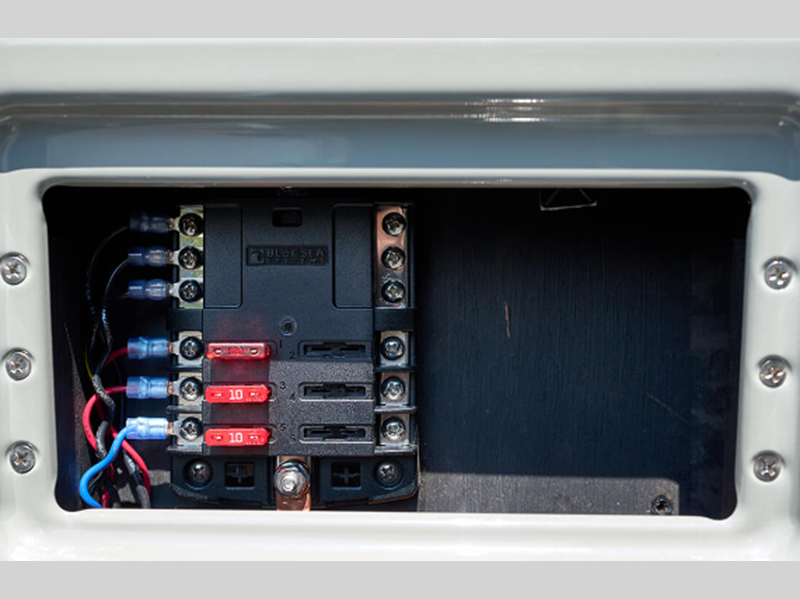

- Fuse/Switch Box installed in the passenger seat base with 3 slots (20 amp max value)
- Quality Control
- Before leaving the shop, our team of experts runs through a routine of checks on each van including:
- Leak testing in our state-of-the-art leak testing bay
- Component functionality
- Fit and Finish checks
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
For over 30 years, the founder of Outside Van built vans that facilitated his adventurous lifestyle. Whether it was surfing, snowboarding, or biking, the vans were specifically designed to meet his personal needs. Officially established in 2007, outside van has evolved into a flourishing business and was acquired in 2021 by Fox Factory helping elevate the brand into a leader in the custom van conversion industry.
With a focus on quality and customer service, we produce over 100 custom van conversions per year. Each custom designed vehicle we put onto the road is hand-built to meet our customers needs.
Our team of over 75 individuals is comprised of some of the industry’s most creative, productive, and experienced professionals. Coming from a wide variety of backgrounds, our staff has the perfect combination of unique skillsets. With a majority of components being designed and built in-house, expertise in every field is essential to our success.
